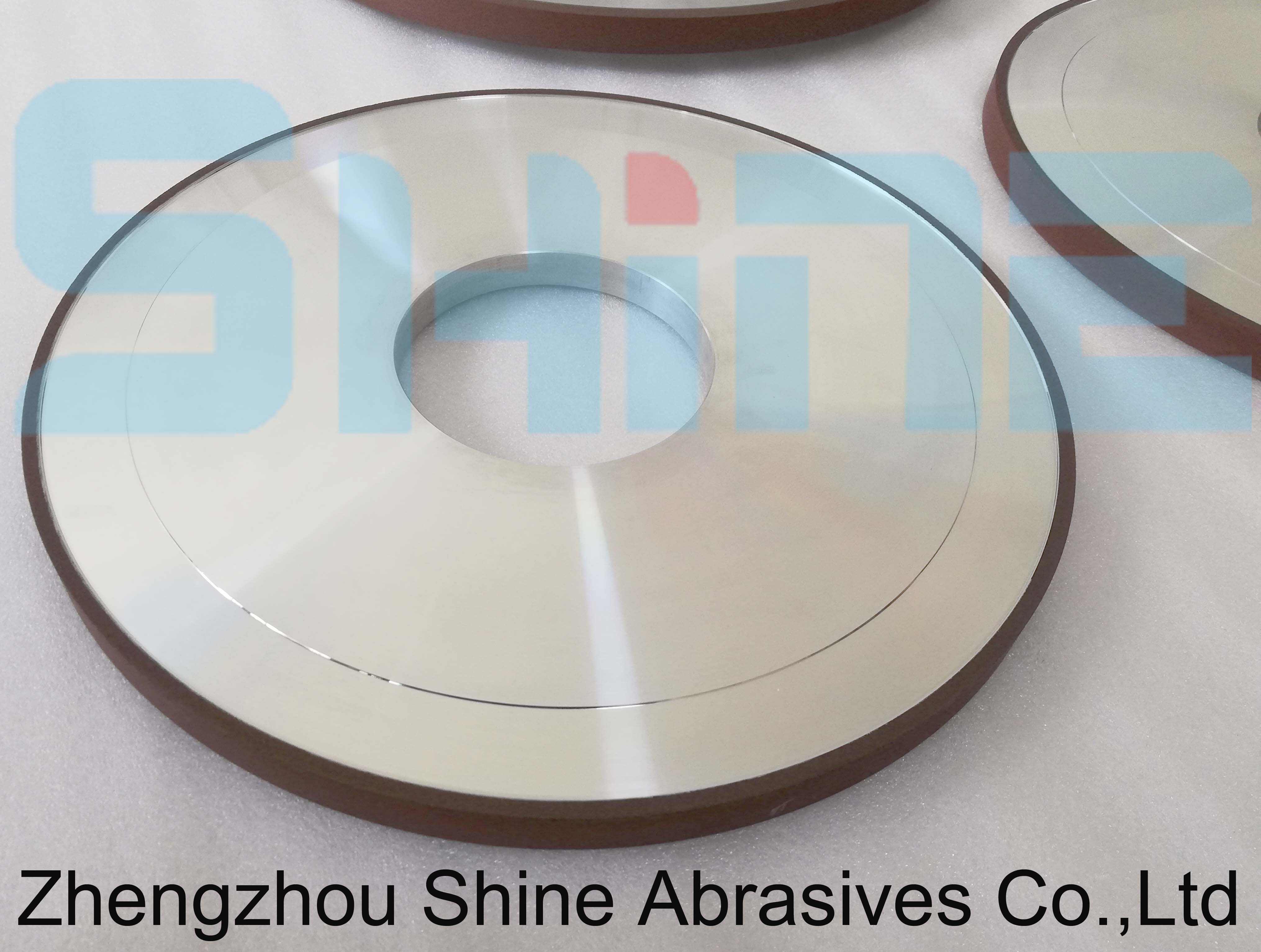

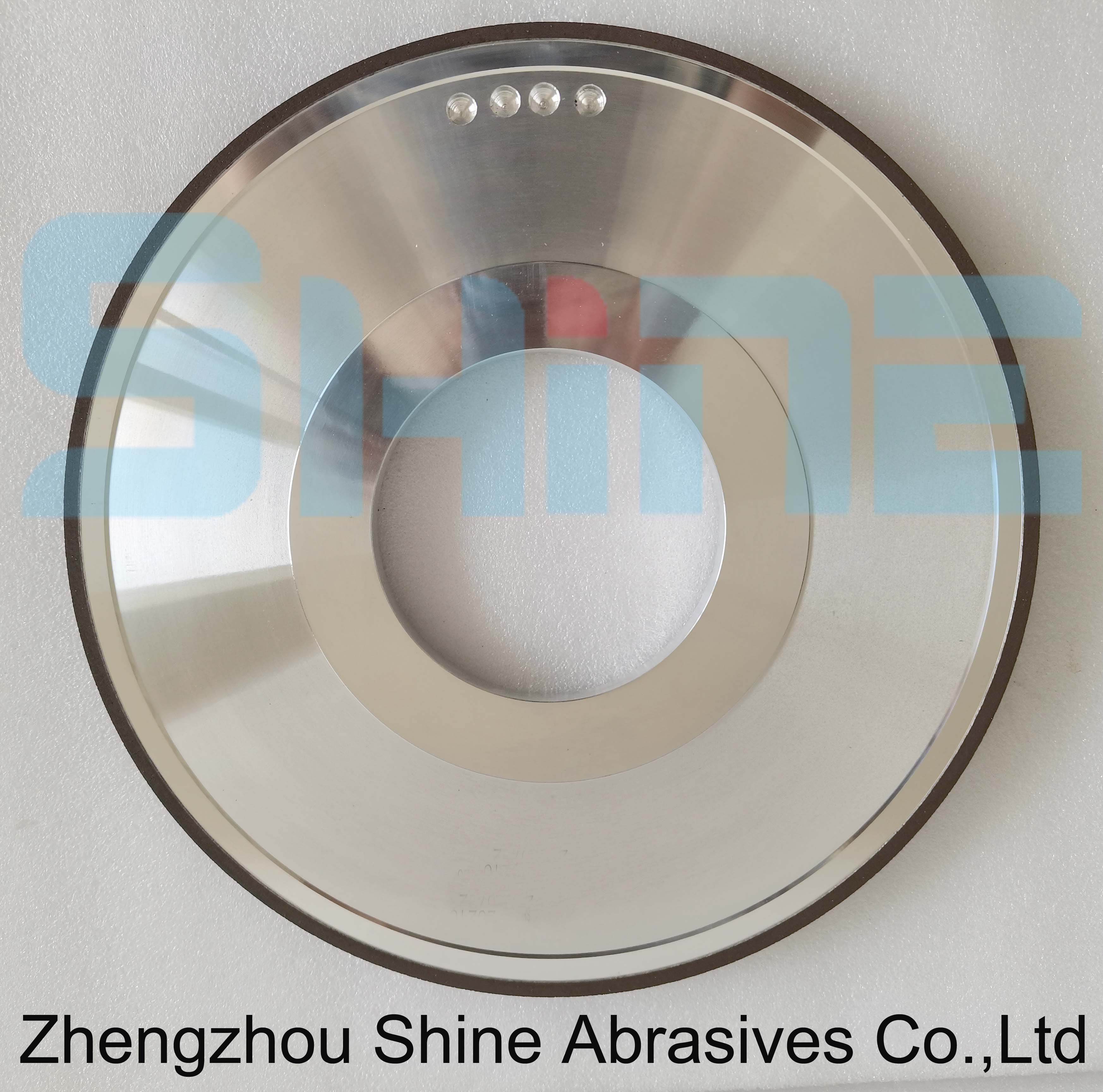

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic

Brand Name : Shine Abrasives

Model Number : 4V2 1A1 14A2

Certification : ISO

Place of Origin : China

MOQ : 2 pcs

Price : FOB

Payment Terms : L/C, T/T

Supply Ability : 1000 PCS in one week

Delivery Time : 5 work days

Packaging Details : one in paperbox

Bond Type : Resin

Grinding Ability : High

Bond : Resin

Processing Method : Sintering

Concentration : 100%

Hardness : Super hard, Superhard diamond

Material : Diamond

Hs Code : 6804211000

Cbn Rim Size : 15x10mm

Features : High Strength and Durability

Wheel Thickness : 1/4 inch

Max Speed : Customized

Arbor Size : 1 inch

Package : Carton

Rim Size : 22mmx10mm

Contact Now

1A1 Resin Diamond Bond Grinding Wheel for Tungsten Carbide Ceramic

Using our proprietary bonds specifically for hardface and hardened alloys, we can provide the stock removal and surface finish you desire. Maintaining and working with virtually indestructible Thermal Spray coatings and other super hard materials is a challenging task, the best material to use for grinding thermal spray is the hardest known material, diamond. Specifically designed for thermal spray coatings, our DP-1 bond performs under the extreme stresses caused by grinding such a hard material. These wheels will provide the rapid stock removal and surface finish you need while maintaining a cost effective, efficient grinding solution.

Popular Sizes
D x T x H x X
D
(mm)
T
(mm)
H
(mm)
X
(mm)
2" x 1" x H
50.8
25.4
customize
customize
2.5" x 1" x H
63.5
25.4
3" x 1" x H
76.2
25.4
3.5" x 1" x H
88.9
25.4
4" x 1" x H
101.6
25.4
5" x 1" x H
127
25.4
6"x1"x1-1/4"x1/2"
150
25.4
31.75
12.7
7"x1"x1-1/4"x1/2"
175
25.4
31.75
12.7
8"X1"X1-1/4"X1/2"
200
25.4
31.75
12.7
10"X1"X1"X1/2"
250
25.4
25.4
12.7
12"x2"x5"x1/2"
300
50.8
127
12.7
14"x2"x5"x1/2"
350
50.8
127
12.7
16"x2"x5"x5/8"
400
50.8
127
16
20"x2"x12"x5/8"
508
50.8
304.8
16
24"X2"X12"X4/5"
610
50.8
304.8
20
30"x2"x12"x4/5"
750
50.8
304.8
20
36"x2"x12"x4/5"
900
50.8
304.8
20

Any nonstandard size and grits size can customised (tell us size or drawing is enough.

Diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc
