CBN 1A1 Diamond Wheels OD Grinding

1A1 Diamond Wheels CBN For High Speed Steel Material OD Grinding

Shine Abrasives Resin bond 1A1 CBN whele For High Speed Steel(HSS)

Material OD Grinding Cylindrical Grinding And Surface Grinding

CBN (cubic boron nitride) abrasives is the second hardest solid material .

It consists of boron and nitrogen in a crystalline structure.

Due to high chemical wear, rotating diamond tools are not suitable for work on steel.

CBN tools are used for grinding below materials.

hardened steels

Roller-bearing and ball-bearing steels

Tools steels

Other steels with a hardness around 54 HRC.

The drawing of Shine Abrasives 1A1 Diamond Wheels CBN For High Speed Steel Material OD Grinding

Main sizes form of Shine Abrasives 1A1 Diamond Wheels CBN For High Speed Steel Material OD Grinding

Other standard sizes also are available as requested.

Question:

What's the concentrate?

The concentration is the amount of grit in carats [ct] (= 0.2 g) per cubic centimeter of Diamond or CBN coating.

A concentration of C100% corresponds to 4.4 ct/cm³ and around 25 % of the volume of

the Diamond or CBN abrasive in the total resin bond.

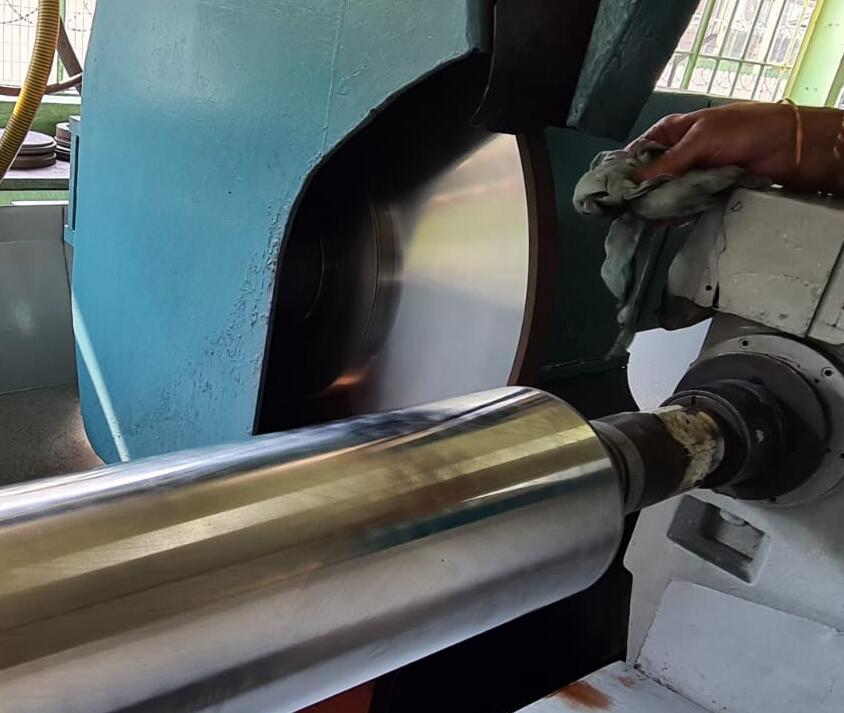

Application picture for reference.

CBN od grinding wheel
